Descripción

P/N CA-1Y7-00MEWN-01
SERIES View
CASE TYPE Mid Tower
DIMENSIONS 456 x 230 x 454 mm
(18 x 9.1 x 17.9 inch)
WEIGHT 6.35 kg / 14 lbs.
SIDE PANEL Tempered Glass x 2
COLOR Matcha Green
MATERIAL SPCC
COOLING SYSTEM Right(intake):

120 x 120 x 25 mm ARGB Lite fan (1000rpm, 22.3 dBA) x 2

Rear(exhaust):
120 x 120 x 25 mm ARGB Lite fan (1000rpm, 22.3 dBA) x 1
DRIVE BAYS 2 x 3.5”, 1 x 2.5” or 2 x 2.5”
EXPANSION SLOTS 7
MOTHERBOARD 6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX),
12” x 9.6” (ATX), 12” x 13” (E-ATX)

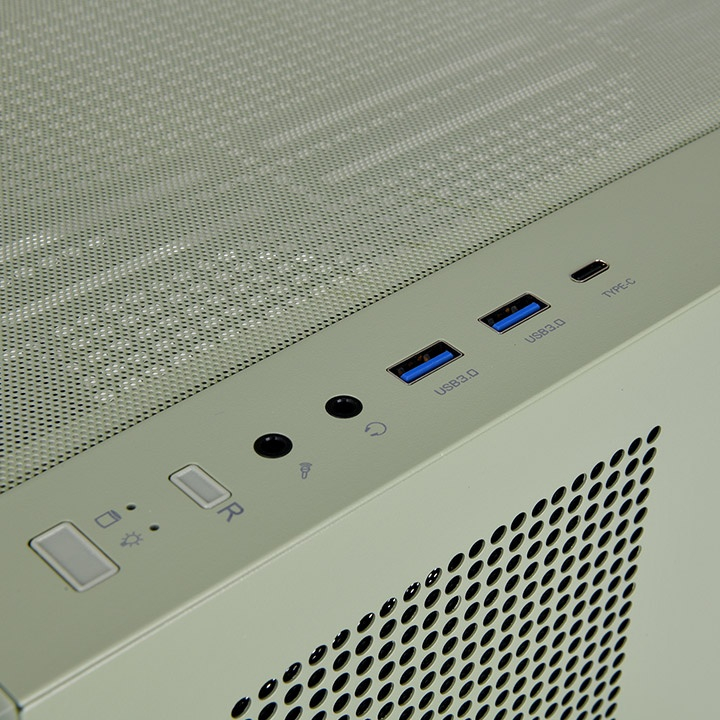

I/O PORT USB 3.2 (Gen 2) Type-C x 1, USB 3.0 x 2, HD Audio x 1
PSU Standard PS2 PSU (optional)
FAN SUPPORT Top:
3 x 120mm, 2 x 120mm, 1 x 120mm
2 x 140mm, 1 x 140mm

Right (M/B Side):
2 x 120mm, 1 x 120mm
Rear:
1 x 120mm, 1 x 140mm
Power Cover:
3 x 120mm, 2 x 120mm, 1 x 120mm
RADIATOR SUPPORT Top:
1 x 360mm, 1 x 240mm, 1 x 120mm
Rear:
1 x 120mm
CLEARANCE CPU cooler max height: 180mm
VGA max length: 420mm
PSU max length: 220mm
