Descripción

TIPO DE PRODUCTO: MICROFONO INALAMBRICO
USO: INSTRUMENTO

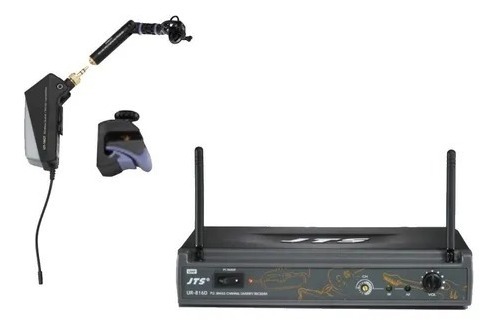

NOMBRE: UR-816

BASE
FREQUENCY PREPARATION: PLL SYNTHESIZED CONTROL
CARRIER FREQUENCY RANGE: 502~960 MHZ 3X FREQUENCY RANGE
856.100 – 864.900 MHZ (F BAND)
606.500 – 629.900 MHZ (U BAND)
721.500 – 748.375 MHZ (G BAND)
658.125 – 678.500 MHZ (D BAND)
487.125 – 506.500 HHZ (I BAND)
502.000 – 694.000 MHZ (T BAND)
S/N RATIO > 105DB
T.H.D.: <0.6%@1KHZ
DISPLAY LED
DISPLAY CONTENTS: ANTENNA A/B, RF/AF STATUS
CONTROLS: POWER ON/OFF, CHANNEL SELECTING, AUDIO LEVEL
AUDIO OUTPUT LEVEL -12DB
AF OUTPUT IMPEDANCE: 600O
SQUELCH PILOT TONE, NOISE AND MUTE
OPERATION VOLTAGE: 12-18 VDC, 200MA
OUTPUT CONNECTOR: 1 BALANCED XLR SOCKET
1 UNBALANCED 6.3MM PHONE JACK
DIMENSION: M/M 210MM (W)* 40MM (H)* 171MM (D)

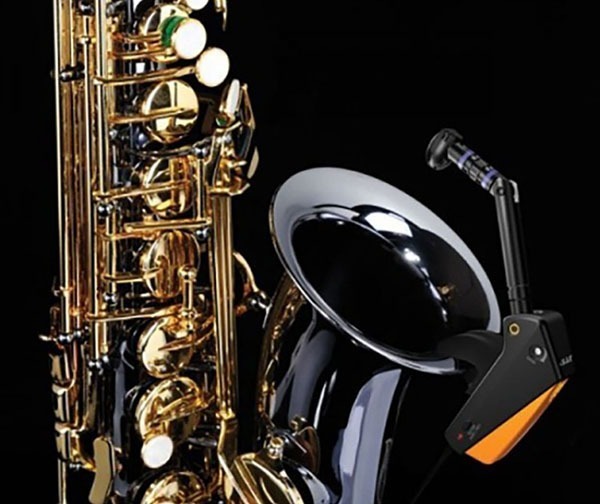

MICROFONO
UT-16GT
FREQUENCY PREPARATION PLL SYNTHESIZED CONTROL
CARRIER FREQUENCY RANGE 502~960 MHZ
3X FREQUENCY RANGE
856.100 – 864.900 MHZ (F BAND)
606.500 – 629.900 MHZ (U BAND)
721.500 – 748.375 MHZ (G BAND)
658.125 – 678.500 MHZ (D BAND)
487.125 – 506.500 HHZ (I BAND)
502.000 – 694.000 MHZ (T BAND)
RF OUTPUT: MAXIMUM 10MW
STABILITY: ±10KHZ
FREQUENCY DEVIATION.: ±48KHZ
LED DISPLAY: POWER ON/OFF, LOW BATTERY
CONTROLS: POWER ON/OFF, AF LEVEL, CHANNEL SELECTING, MUTE
SPURIOUS EMISSIONS: <-50 DBC
AUDIO FREQUENCY RESPONSE: 40~18,000 HZ
BATTERY LR03, AAA 1.5V
