Descripción

CHIPSET
INTEL Z890.

CPU
Supports Intel Core Ultra Processors (Series 2).

LGA 1851.

MEMORIA
4x DDR5 UDIMM, Maximum Memory Capacity 256GB.

Memory Support 9200 – 6400 (OC) MT/s / 6400 – 4800 (JEDEC) MT/s.

Max. overclocking frequency:

• 1DPC 1R Max speed up to 9200+ MT/s.

• 1DPC 2R Max speed up to 7200+ MT/s.

• 2DPC 1R Max speed up to 4800+ MT/s.

• 2DPC 2R Max speed up to 4800+ MT/s.

Supports Intel POR Speed and JEDEC Speed.

Supports Memory Overclocking and Intel® XMP 3.0.

Supports Dual-Controller Dual-Channel mode.

Supports Non-ECC, Un-buffered memory.

Supports CUDIMM.

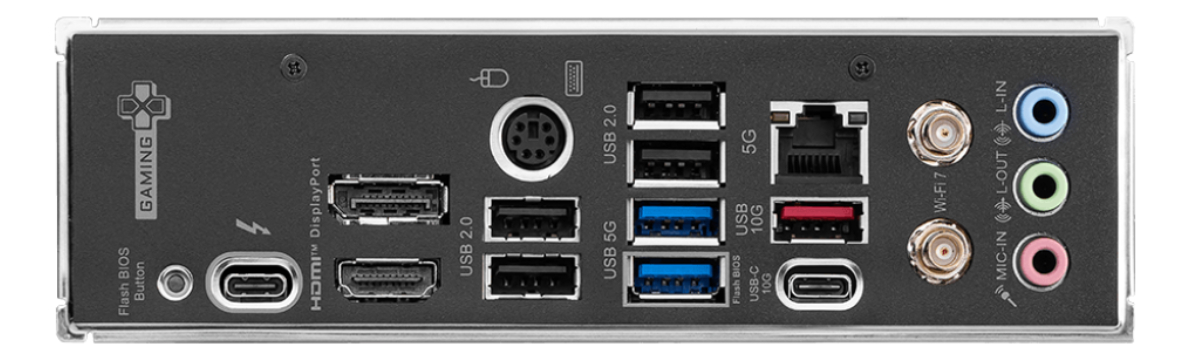

GRÁFICOS INTEGRADOS
1x HDMI.

Support HDMI™ 2.1, maximum resolution of 4K 60Hz.

1x DisplayPort.

Support DisplayPort 1.4, maximum resolution of 4K 60Hz.

1x Type-C DisplayPort.

Thunderbolt 4 ports, supporting DisplayPort 1.4 over USB Type-C, with a maximum resolution of 4K 120Hz / 8K 60Hz.

RANURA
3x PCI-E x16 slot.

1x PCI-E x1 slot.

PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU).

PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset).

PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset).

PCI_E4 Gen PCIe 4.0 supports up to x4 (From Chipset).

Audio Realtek ALC897 Codec.

7.1-Channel High Definition Audio.

RAID
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices.

Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices.

LAN INALÁMBRICA Y BLUETOOTH
Intel Killer BE1750x Wi-Fi 7.

The Wireless module is pre-installed in the M.2 (Key-E) slot.

Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps.

Supports 802.11 a/ b/ g/ n/ ac/ ax/ be.

Supports Bluetooth 5.4, MLO, 4KQAM.
