Descripción

GPU

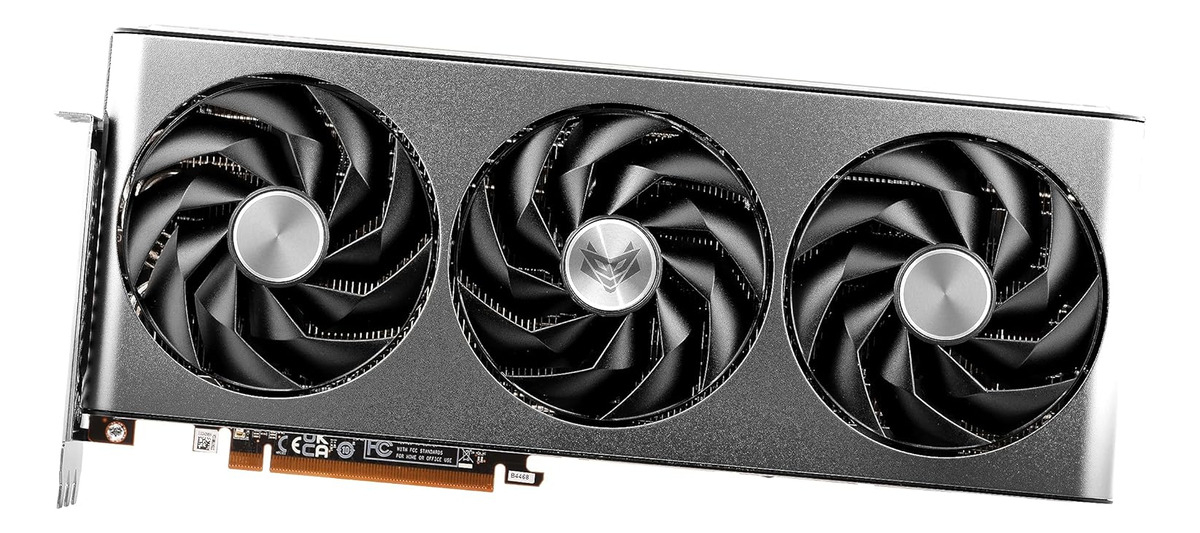

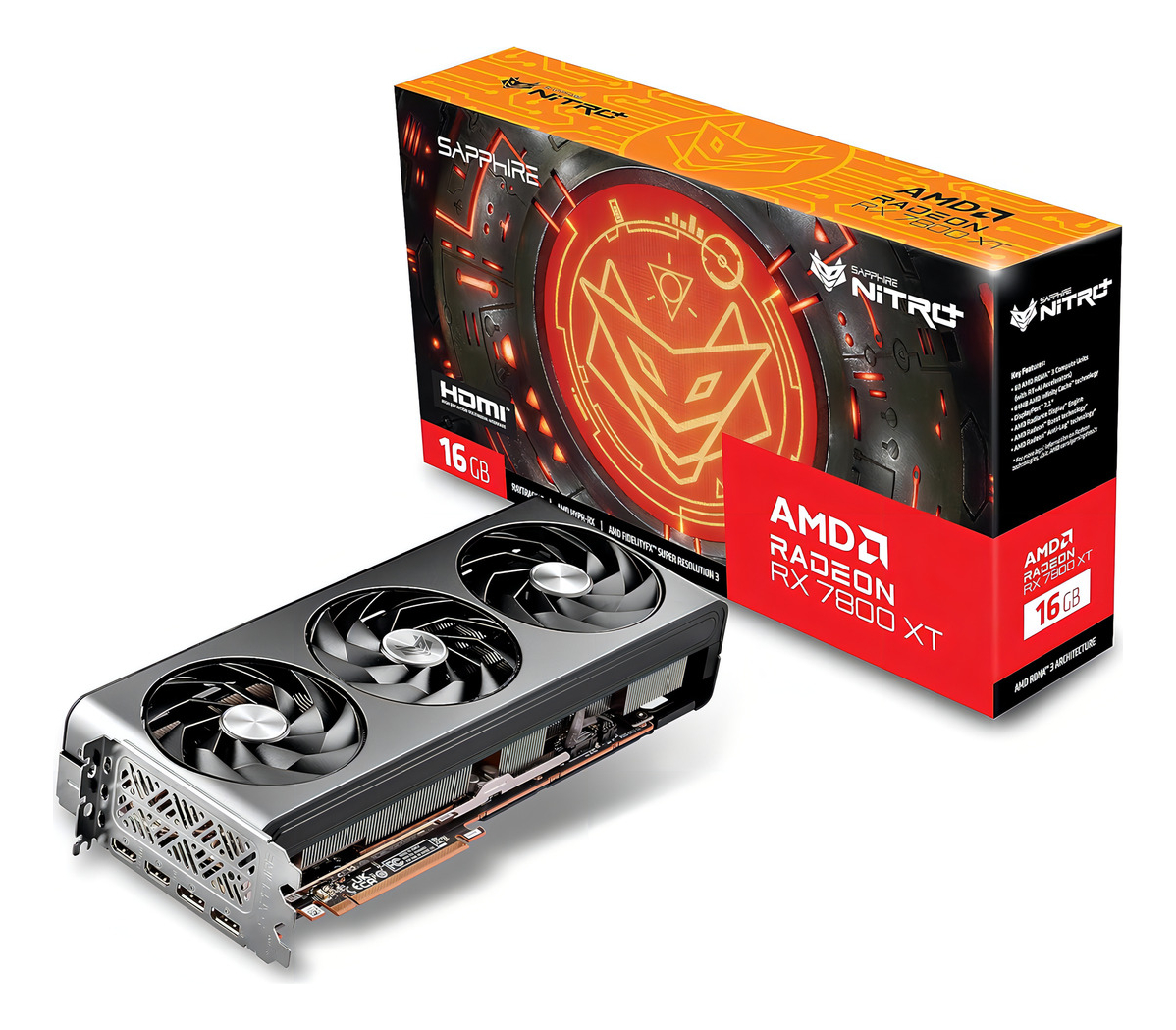

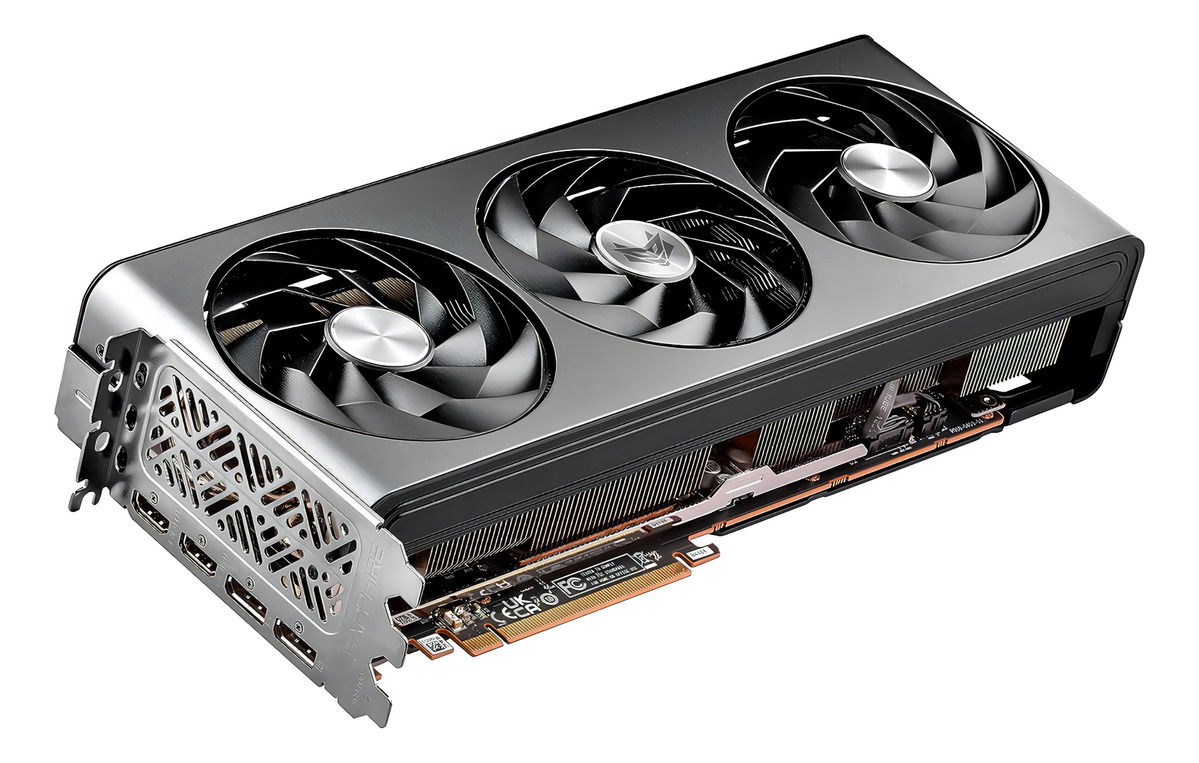

AMD Radeon™ RX 7800 XT Graphics Card
5nm GPU
AMD RDNA™ 3 Architecture
Engine Clock
Boost Clock: Up to 2565 MHz
Game Clock: Up to 2254MHz

Boost Clock is the maximum frequency achievable on the GPU running bursty workload. Boost clock achievability, frequency, and sustainabilty will vary based on several factors, including but not limited to: thermal conditions and variation in application and workloads.

Game Clock is the expected GPU clock when running typical gaming applications, set to typical TGP(Total Graphics Power). Actual individual game clock results may vary.

Stream Processors
3840
Compute Units
60 CU (with RT+AI Accelerators)
Infinity Cache
64MB
Ray Accelerators
60
Memory Size/Bus
16GB/256 bit GDDR6
Memory Clock
19.5 Gbps Effective
Displays
Maximum 4 Displays
Resolution
HDMI™: 7680×4320
DisplayPort 2.1: 7680×4320
Interface
PCI-Express 4.0 x16

Output
2x HDMI
2x DisplayPort

BIOS Support
Dual UEFI
Game Index
4K

Sapphire Features
Dual BIOS
TriXX Software Switch
Premium Digital Power Design
Ultra High Performance Conductive Polymer Aluminum Capacitors
Fuse Protection
Tri-X Cooling Technology
High TG Copper PCB
Optimized Composite Heatpipe
Intelligent Fan Control
Precision Fan Control
Metal Backplate with ARGB
ARGB Light Bar
Two-Ball Bearing Fans
Angular Velocity Fan Blade
Assistive System Fan Control
Cold Rolled Steel Frame
Dedicated VRM Cooling
Wave Fin Design
V Shape Fin Design for GPU Cooling
TriXX Supported
Fan Check
Fan Quick Connect
TriXX Boost
NITRO Glow
External RGB LED MB Synchronization
Accessories Bundled
Graphics Card Supporter
ARGB Extension Cable
AMD Features
AMD RDNA™ 3 Architecture
60 AMD RDNA™ 3 Compute Units
64MB AMD Infinity Cache™ Technology
DisplayPort™ 2.1 Support
AMD Radiance Display™ Engine
16GB GDDR6 on 256-Bit Memory Bus
PCI® Express 4.0 ready
AMD FidelityFX™ Super Resolution technology
Microsoft® DirectX® 12 Ultimate Support
Microsoft® DirectStorage Support
Vulkan® Optimized
AMD Smart Technologies
AMD Software: Adrenalin Edition™
AMD Noise Suppression
AMD Privacy View
AMD Radeon™ Super Resolution technology
AMD Link
AMD FreeSync™ Technology
Cooler Type
3 Fans

Form Factor
3 slot, ATX
Dimension: 320(L)X 134.85(W)X 61.57 (H)mm
Power Consumption
288W Total Board Power

OS
Linux®, Windows® 10, and Windows 11. 64-bit operating system required

System Requirement
Minimum 700 Watt Power Supply
2 x 8-pin Power Connector.
PCI Express® based PC is required with one X16 lane graphics slot available on the motherboard.
Minimum 8GB of system memory. 16GB recommended.
